Trommel Screen Mesh

There are two types of trommel screen meshes: wire woven trommel screen mesh and perforated trommel screen mesh. The wire mesh is a square hole mesh. The size of the product under the sieve is 100mm, the middle is 10-50mm, and the fineness can be less than 3mm. The perforated trommel screen mesh has two types of mesh holes: round holes and square holes. The perforated trommel screen mesh is mainly used for large mesh, from 0.2 to several hundred millimeters.

Wire woven trommel screen mesh

The wire woven trommel screen mesh is mainly made of round steel with the same wire diameter. The wire braided mesh has the lowest cost and good flexibility, but the relative accuracy is the lowest, and the mesh may be deformed. The mesh accuracy can be controlled by expanding and shrinking holes, and the holes can be fixed by electrochemical methods.

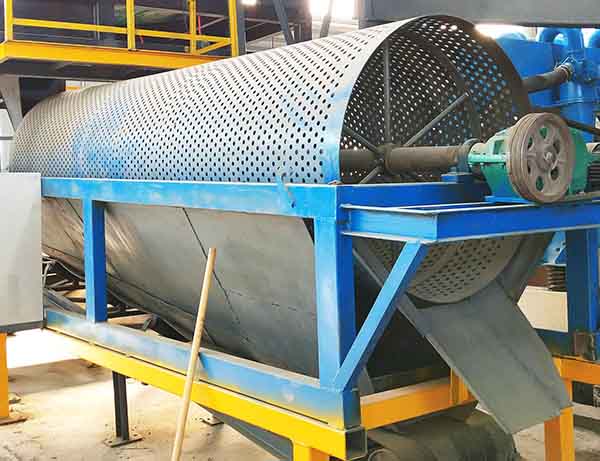

Perforated trommel screen mesh

There are two types of perforated trommel screen mesh: round holes and square holes. The production process of perforated trommel screen mesh is simple. The perforated trommel screen mesh is rounded and the interface docking is very strong and durable. The perforated trommel screen mesh is mainly used for the screening of large particles. The mesh is uniform, the precision is high, and the screen plate is not easy to deform. For corrosive materials, the punching screen can also be made of stainless steel.
